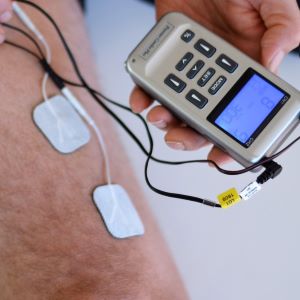

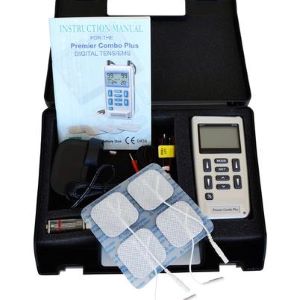

This unit is a combination stimulator of TENS and EMS which can be used for pain relief and muscle stimulation. The device is provided with two controllable output channels, each independent of the other. A pair of electrodes can be connected to each output channel. The intensity level and settings are controlled by press buttons.
Channel: Dual, isolated between channels Pulse Amplitude: Adjustable, 0-110 mA peak into 500 ohm load each channel. Wave Form: Asymmetrical Bi-Phasic Square Pulse Voltage: 0 to 55V (Load: 500 ohm) Power source: One 9 Volt Battery. Size: 11.8cm(L) x 6 cm(W) x 3.1cm(H) Weight: 157 grams with battery. Pulse Rate: Adjustable, from 2 to 150 Hz, 1 Hz/step Pulse Width: Adjustable, from 50 to 300 microseconds, 10 µs/step
